Product Catalog.
Robotic Welding Guns.
Main features
With an extensive selection of models, AVENOR's automatic welding guns cover a comprehensive range of shapes, built around three critical components: the transformer, the servo pressurization system, and the electrode arm.
Advantages of the process
- High precision welding
- High performance operation
- Intelligent control
- Reduces labor costs

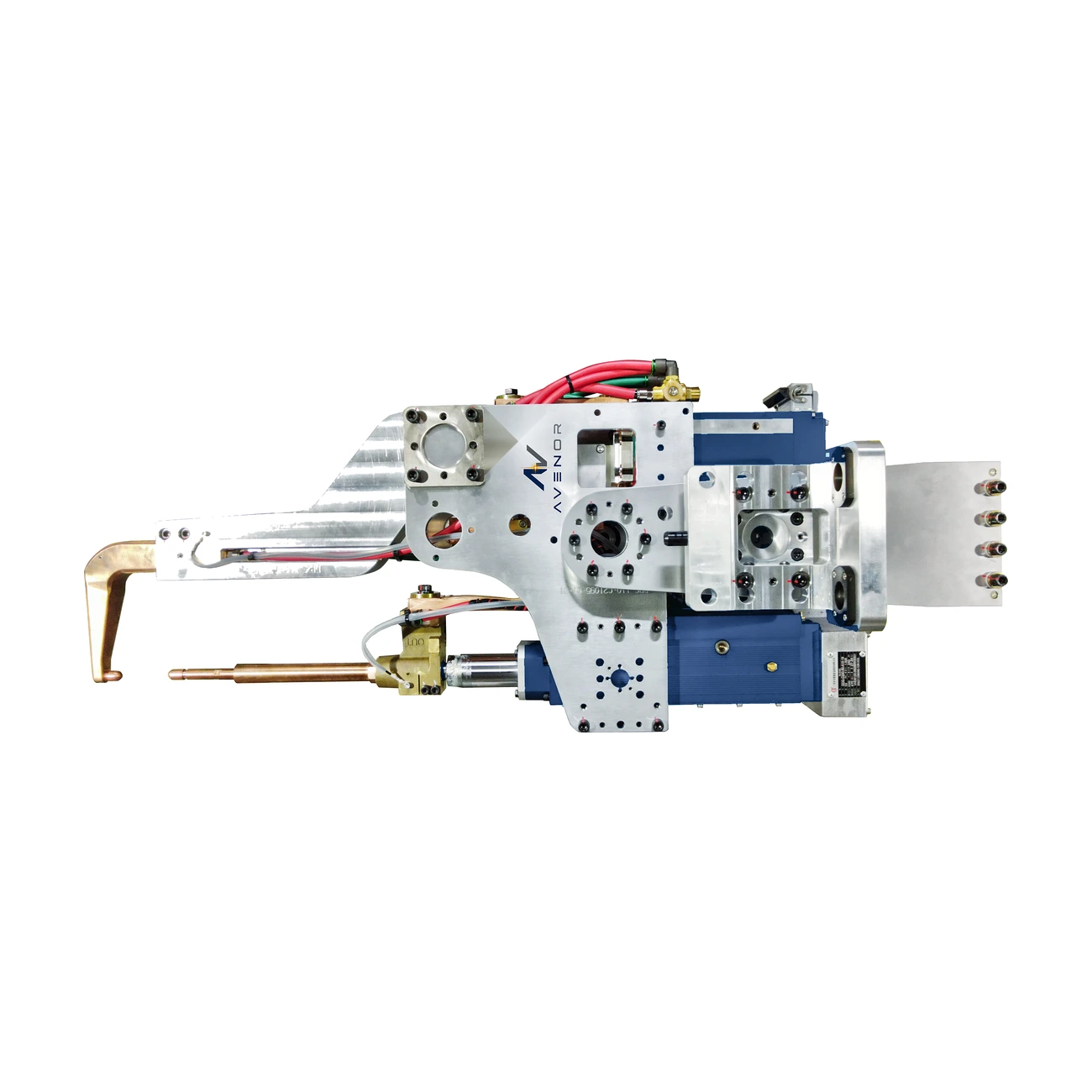

C type
Features
The C type automatic welding gun is built from independently developed and manufactured key components. The gun body has a high level of standardization, with a 90% interchange rate between different welding guns, which reduces spare parts inventory and lowers operational costs.
Benefits
Modular design and lightweight construction allow quick disassembly and straightforward servicing. A high degree of symmetry significantly reduces the number of welding gun types needed on a production line.
MFDC 110 kVA (1000 Hz / 2000 Hz). Maximum output current 24 kA.
X type
Features
The X type welding gun uses copper sleeve transitions between the aluminum electrode arm and the copper electrode adapter, preventing oxidation and ensuring superior electrical conductivity. With a robust gun body and a maximum electrode pressure of up to 600 kg, AVENOR's robotic guns produce significantly less welding spatter and perform strongly in high-current applications.
Benefits
The lightweight aluminum gun body reduces robot load while increasing operational speed and efficiency. It also minimizes spatter and improves operator safety.
MFDC 110 kVA (1000 Hz / 2000 Hz). Maximum output current 24 kA.

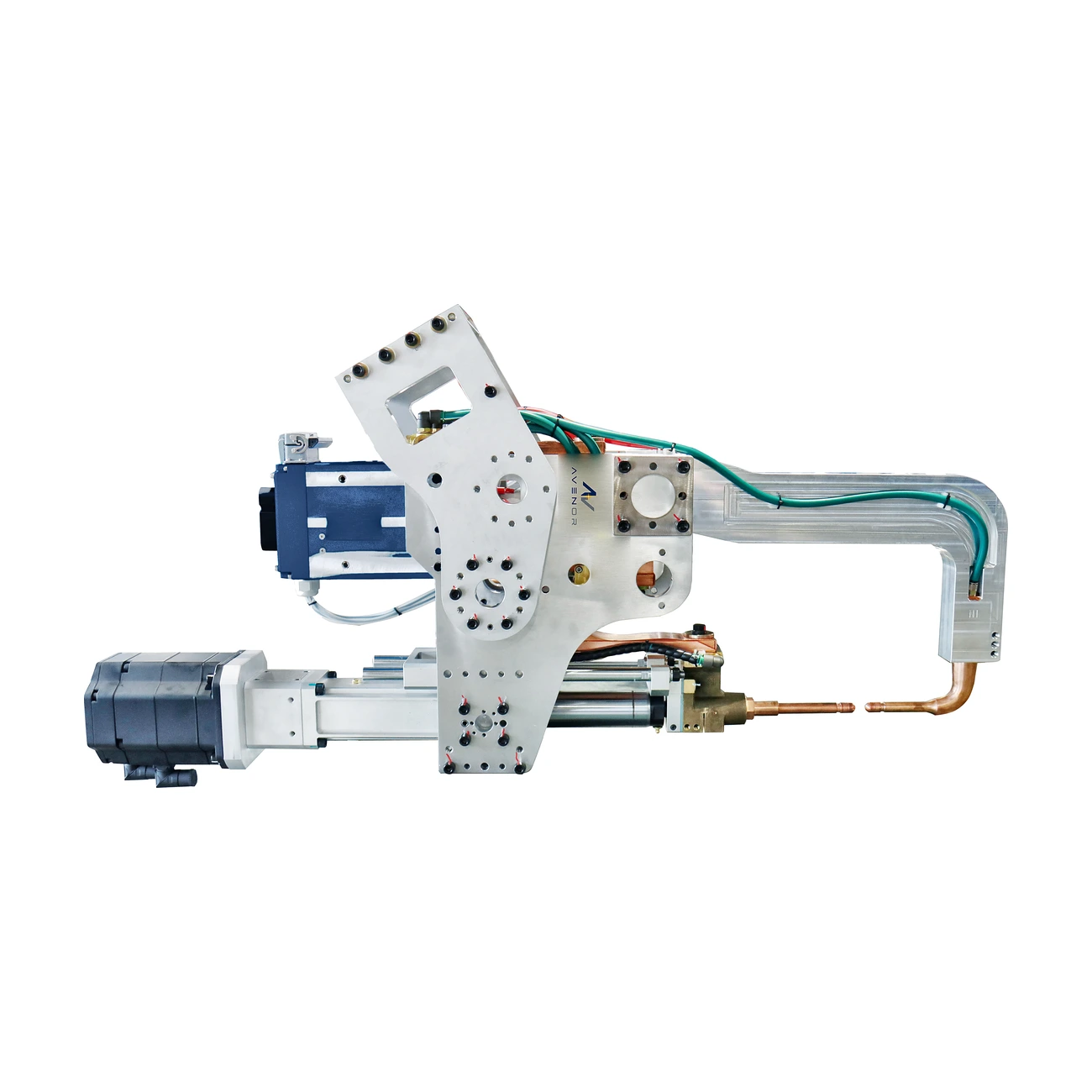

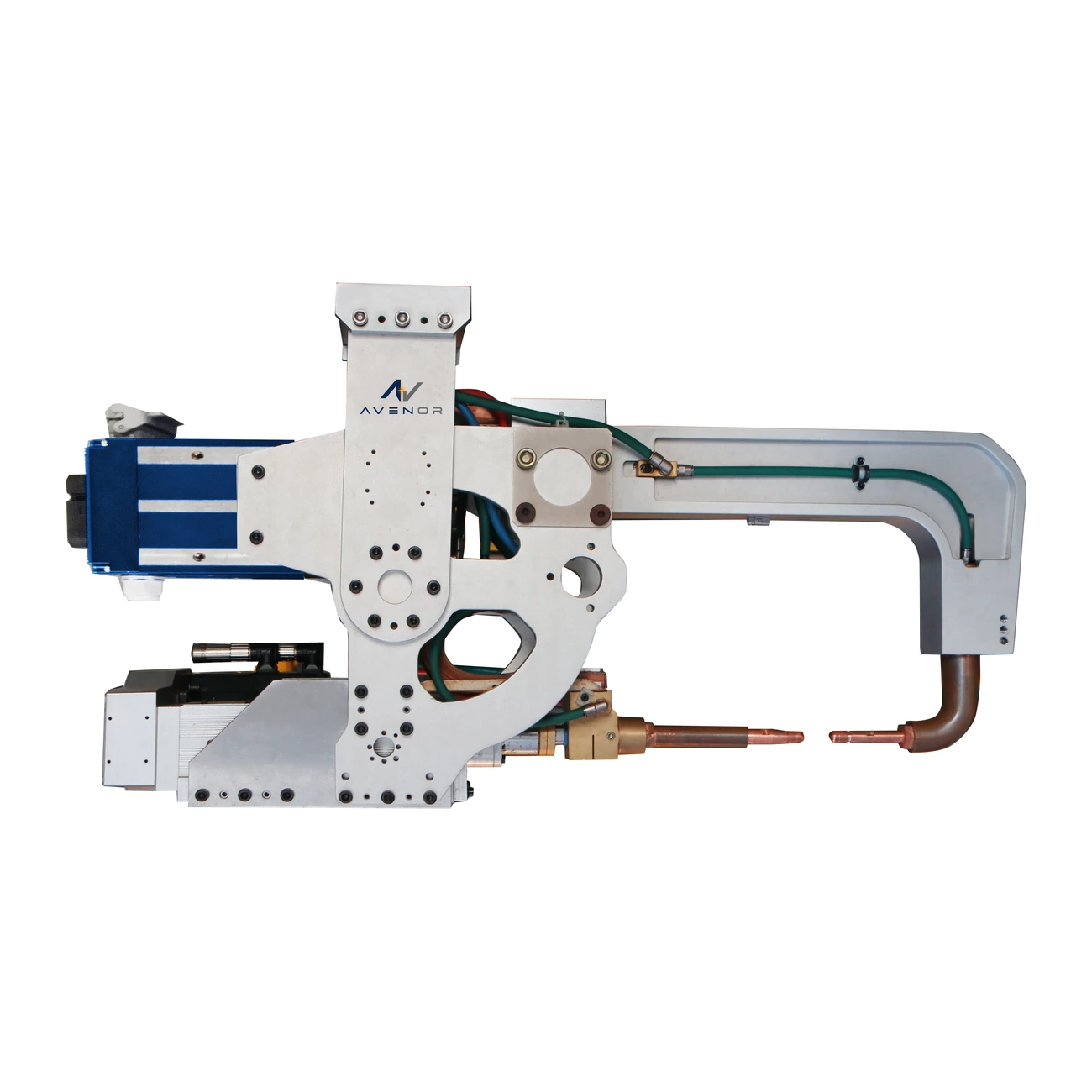

Aluminum welding gun
Features
The aluminum welding gun enables efficient welding of aluminum alloy components for automotive bodies. In the rapidly advancing new energy vehicle sector, it serves as specialized equipment for lightweight vehicle manufacturing, which is central to improving vehicle performance and efficiency.
Benefits
High welding pressure, high current output, a high load rate, extended electrode life, high modularity, and flexible 100% body-in-white application streamline your processes and improve production efficiency.
MFDC 250 kVA (1000 Hz).
Request a quotation.
Tell us your application and we will come back with a specification.
